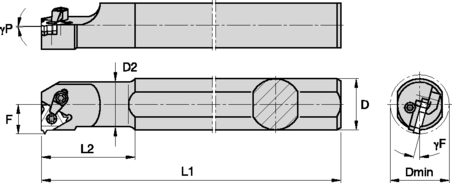

Laydown Threading - Boring Bars
S-LSE
|
|
|
|
|
Carbide shank with through coolant. |
|
|
| Part # |
catalog # |
D |
D min |
D2 |
F |
L1 |
L2 |
γF° |
γP° |
insert size |
shim |
shim screw |
Torx |
clamp assembly |
Torx |
insert screw |
Torx |
|
Right hand |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2968597 |
S0612LSER2 |
.750 |
.500 |
.375 |
.28 |
7.00 |
1.00 |
-15.0 |
-1.5 |
2 |
- |
- |
- |
- |
- |
SSN2T |
T8 |
| 2968599 |
S0812LSER2 |
.750 |
.650 |
.500 |
.34 |
7.00 |
1.25 |
-15.0 |
-1.5 |
2 |
- |
- |
- |
- |
- |
SSN2T |
T8 |
| 2968601 |
S1012LSER3 |
.750 |
.800 |
.625 |
.46 |
7.00 |
1.50 |
-15.0 |
-1.5 |
3 |
- |
- |
- |
- |
- |
SN3TPKG |
T10 |
| 2968763 |
S1212LSER3 |
.750 |
.900 |
- |
.51 |
7.00 |
1.57 |
-15.0 |
-1.5 |
3 |
SMYI3 |
SSY3T |
T10 |
CKC3 |
T15 |
SSA3T |
T10 |
| 2968765 |
S1620LSER3 |
1.250 |
1.200 |
1.000 |
.65 |
10.00 |
2.50 |
-15.0 |
-1.5 |
3 |
SMYI3 |
SSY3T |
T10 |
CKC3 |
T15 |
SSA3T |
T10 |
| 2968595 |
S2020LSER3 |
1.250 |
1.450 |
- |
.77 |
10.00 |
2.03 |
-15.0 |
-1.5 |
3 |
SMYI3 |
SSY3T |
T10 |
CKC3 |
T15 |
SSA3T |
T10 |
|
Left hand |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2968596 |
S0612LSEL2 |
.750 |
.500 |
.375 |
.28 |
7.00 |
1.00 |
-15.0 |
-1.5 |
2 |
- |
- |
- |
- |
- |
SSN2T |
T8 |
| 2968598 |
S0812LSEL2 |
.750 |
.650 |
.500 |
.34 |
7.00 |
1.25 |
-15.0 |
-1.5 |
2 |
- |
- |
- |
- |
- |
SSN2T |
T8 |
| 2968600 |
S1012LSEL3 |
.750 |
.800 |
.625 |
.46 |
7.00 |
1.50 |
-15.0 |
-1.5 |
3 |
- |
- |
- |
- |
- |
SN3TPKG |
T10 |
| 2968602 |
S1212LSEL3 |
.750 |
.900 |
- |
.51 |
7.00 |
1.57 |
-15.0 |
-1.5 |
3 |
SMYE3 |
SSY3T |
T10 |
CKC3 |
T15 |
SSA3T |
T10 |
| 2968764 |
S1620LSEL3 |
1.250 |
1.200 |
1.000 |
.65 |
10.00 |
2.50 |
-15.0 |
-1.5 |
3 |
SMYE3 |
SSY3T |
T10 |
CKC3 |
T15 |
SSA3T |
T10 |
NOTE: Items listed without a shim are designed for a 1.5° inclination angle. |
|
