TopThread™ - Boring Bars
A-NE





Steel shank with through coolant.

    CLICK TOOL NUMBERS TO ORDER

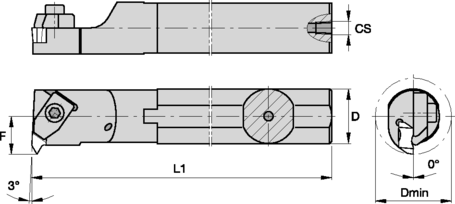

Part # catalog number D D min F L1 CS gage insert clamp clamp screw clamp screw hex / Torx plus
Right hand
3632117 A08NER2 .500 .730 .437 8 1/16-27 NPT N.2L CM147 S39 7/64
3632114 A10NER2 .625 1.000 .500 10 1/8-27 NPT N.2L CM75 S310 7/64
3632118 A12NER2 .750 1.125 .562 10 1/8-27 NPT N.2L CM75 S310 7/64
3632130 A16NER2 1.000 1.375 .688 12 1/4-18 NPT N.2L CM75 S310 7/64
3632113 A16NER3 1.000 1.375 .688 12 1/4-18 NPT N.3L CM73LP S2112 25 IP
3632116 A20NER3 1.250 1.750 .875 14 1/4-18 NPT N.3L CM73LP S2112 25 IP
3632115 A24NER3 1.500 2.000 1.000 14 1/4-18 NPT N.3L CM73LP S2112 25 IP
3632132 A28NER3 1.750 2.250 1.125 14 1/4-18 NPT N.3L CM73LP S2112 25 IP
3632122 A32NER3 2.000 2.500 1.250 16 1/4-18 NPT N.3L CM73LP S2112 25 IP
3632146 A40NER3 2.500 3.000 1.500 16 1/4-18 NPT N.3L CM73LP S2112 25 IP
3632123 A28NER4 1.750 2.500 1.250 14 1/4-18 NPT N.4L CM73LP S2112 25 IP
3632125 A32NER4 2.000 2.750 1.375 16 1/4-18 NPT N.4L CM73LP S2112 25 IP
3632136 A40NER4 2.500 3.250 1.625 16 1/4-18 NPT N.4L CM73LP S2112 25 IP
3637514 A32NER5 2.000 2.812 1.406 16 1/4-18 NPT N.5L CM81 S352 1/4
3632143 A32NER6 2.000 2.750 1.375 16 1/4-18 NPT N.6L CM121 S412 5/32
3637498 A40NER6 2.500 3.250 1.625 16 1/4-18 NPT N.6L CM121 S412 5/32
Left hand
3632131 A08NEL2 .500 .730 .437 8 1/16-27 NPT N.2R CM146 S39 7/64
3632127 A10NEL2 .625 1.000 .500 10 1/8-27 NPT N.2R CM74 S310 7/64
3632126 A12NEL2 .750 1.125 .562 10 1/8-27 NPT N.2R CM74 S310 7/64
3632142 A16NEL2 1.000 1.375 .688 12 1/4-18 NPT N.2R CM74 S310 7/64
3632120 A16NEL3 1.000 1.375 .688 12 1/4-18 NPT N.3R CM72LP S2112 25 IP
3632124 A20NEL3 1.250 1.750 .875 14 1/4-18 NPT N.3R CM72LP S2112 25 IP
3632128 A24NEL3 1.500 2.000 1.000 14 1/4-18 NPT N.3R CM72LP S2112 25 IP
3637490 A28NEL3 1.750 2.250 1.125 14 1/4-18 NPT N.3R CM72LP S2112 25 IP
3632139 A32NEL3 2.000 2.500 1.250 16 1/4-18 NPT N.3R CM72LP S2112 25 IP
3637504 A40NEL3 2.500 3.000 1.500 16 1/4-18 NPT N.3R CM72LP S2112 25 IP
3632141 A28NEL4 1.750 2.500 1.250 14 1/4-18 NPT N.4R CM72LP S2112 25 IP
3632149 A32NEL4 2.000 2.750 1.375 16 1/4-18 NPT N.4R CM72LP S2112 25 IP
3637491 A40NEL4 2.500 3.250 1.625 16 1/4-18 NPT N.4R CM72LP S2112 25 IP
3637527 A32NEL5 2.000 2.812 1.406 16 1/4-18 NPT N.5R CM80 S352 1/4
3637512 A32NEL6 2.000 2.750 1.375 16 1/4-18 NPT N.6R CM120 S412 5/32
NOTE: F dimension shown over N-style gage insert.
