TopThread™ - Toolholders
NAS





Right Hand Tool

    CLICK TOOL NUMBERS TO ORDER

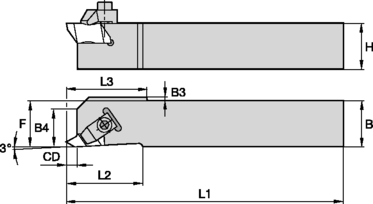

Part # catalog number H B F L1 L2 B4 CD B3 L3 gage insert clamp clamp screw clamp screw hex / Torx Plus
Right hand
3632140 NASR062D .375 .375 .375 6.00 .75 .35 .138 .070 .88 N.2R CM182 S310 7/64
3636529 NASR082D .500 .500 .500 6.00 .75 .35 .138 - - N.2R CM182 S310 7/64
3639039 NASR102B .625 .625 .625 4.50 .75 .35 .138 - - N.2R CM74 S310 7/64
3639042 NASR083D .500 .500 .500 6.00 1.25 .50 .210 .125 1.32 N.3R CM184LP S2112 25 IP
3636532 NASR103B .625 .625 .625 4.50 1.25 - .210 - - N.3R CM184LP S2112 25 IP
Left hand
3637531 NASL062D .375 .375 .375 6.00 .75 .35 .138 .070 .88 N.2L CM183 S310 7/64
3636534 NASL082D .500 .500 .500 6.00 .75 .35 .138 - - N.2L CM183 S310 7/64
3637489 NASL102B .625 .625 .625 4.50 .75 .35 .138 - - N.2L CM75 S310 7/64
3637497 NASL083D .500 .500 .500 6.00 1.25 .50 .210 .125 1.32 N.3L CM185 S412 25 IP
3636524 NASL103B .625 .625 .625 4.50 1.25 - .210 - - N.3L CM185LP S2112 25 IP
NOTE: F dimension shown over N-style gage insert.
