TopThread™ - Toolholders
NE





    CLICK TOOL NUMBERS TO ORDER

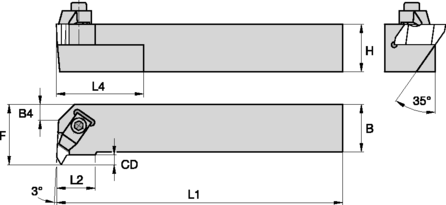

Part # catalog number H B F L1 L2 L4 B4 CD gage insert clamp clamp
screw 		clamp
screw 		hex/
Torx Plus
Right hand
3637521 NER062 .375 .375 .750 2.50 .50 .50 - .138 N.2L CM75 S310 7/64
3637494 NER082V .500 .500 .750 3.50 .50 1.00 - .138 N.2L CM75 S310 7/64
3637517 NER102B .625 .625 .750 4.50 - 1.00 - .138 N.2L CM75 S310 7/64
3632156 NER122B .750 .750 1.000 4.50 .50 1.00 .29 .138 N.2L CM75 S310 7/64
3637486 NER162C 1.000 1.000 1.250 5.00 .50 1.00 .41 .138 N.2L CM75 S310 7/64
3632133 NER123B .750 .750 1.125 4.50 .75 2.00 - .210 N.3L CM73LP S2112 25 IP
3639038 NER163C 1.000 1.000 1.250 5.00 .75 2.00 - .210 N.3L CM73LP S2112 25 IP
3639030 NER163D 1.000 1.000 1.250 6.00 .75 2.00 - .210 N.3L CM73LP S2112 25 IP
3632150 NER203D 1.250 1.250 1.500 6.00 .75 2.00 .26 .210 N.3L CM73LP S2112 25 IP
3637524 NER243D 1.500 1.500 2.000 6.00 .75 2.00 .76 .210 N.3L CM73LP S2112 25 IP
3637523 NER853D 1.250 1.000 1.250 6.00 .75 2.00 - .210 N.3L CM73LP S2112 25 IP
3637492 NER164C 1.000 1.000 1.375 5.00 .75 2.00 - .294 N.4L CM73LP S2112 25 IP
3639043 NER164D 1.000 1.000 1.375 6.00 .75 2.00 - .294 N.4L CM73LP S2112 25 IP
3632157 NER204D 1.250 1.250 1.625 6.00 .75 2.00 .27 .294 N.4L CM73LP S2112 25 IP
3637522 NER244D 1.500 1.500 2.000 6.00 .75 2.00 .65 .294 N.4L CM73LP S2112 25 IP
3637542 NER205D 1.250 1.250 2.000 6.00 1.44 2.00 - .415 N.5L CM81 S352 1/4
3637544 NER206D 1.250 1.250 1.625 6.00 .75 2.00 .27 .300 N.6L CM121 S412 5/32
Left hand
3637525 NEL062 .375 .375 .750 2.50 .50 .50 - .138 N.2R CM74 S310 7/64
3632158 NEL082V .500 .500 .750 3.50 .50 1.00 - .138 N.2R CM74 S310 7/64
3637532 NEL102B .625 .625 .750 4.50 - 1.00 - .138 N.2R CM74 S310 7/64
3637503 NEL122B .750 .750 1.000 4.50 .50 1.00 .29 .138 N.2R CM74 S310 7/64
3637500 NEL162C 1.000 1.000 1.250 5.00 .50 1.00 .41 .138 N.2R CM74 S310 7/64
3632144 NEL123B .750 .750 1.125 4.50 .75 2.00 - .210 N.3R CM72LP S2112 25 IP
3632155 NEL163C 1.000 1.000 1.250 5.00 .75 2.00 - .210 N.3R CM72LP S2112 25 IP
3639041 NEL163D 1.000 1.000 1.250 6.00 .75 2.00 - .210 N.3R CM72LP S2112 25 IP
3632154 NEL203D 1.250 1.250 1.500 6.00 .75 2.00 .26 .210 N.3R CM72LP S2112 25 IP
3637537 NEL243D 1.500 1.500 2.000 6.00 .75 2.00 .76 .210 N.3R CM72LP S2112 25 IP
3637538 NEL853D 1.250 1.000 1.250 6.00 .75 2.00 - .210 N.3R CM72LP S2112 25 IP
3637493 NEL164C 1.000 1.000 1.375 5.00 .75 2.00 - .294 N.4R CM72LP S2112 25 IP
3632162 NEL164D 1.000 1.000 1.375 6.00 .75 2.00 - .294 N.4R CM72LP S2112 25 IP
3632159 NEL204D 1.250 1.250 1.625 6.00 .75 2.00 .27 .294 N.4R CM72LP S2112 25 IP
3637543 NEL244D 1.500 1.500 2.000 6.00 .75 2.00 .65 .294 N.4R CM72LP S2112 25 IP
3637549 NEL205D 1.250 1.250 2.000 6.00 1.44 2.00 - .415 N.5R CM80 S352 1/4
3641697 NEL206D 1.250 1.250 1.625 6.00 .75 2.00 .27 .300 N.6R CM120 S412 5/32
NOTE: F dimension shown over N-style gage insert.
