TopThread™ - Toolholders
NS DH





    CLICK TOOL NUMBERS TO ORDER

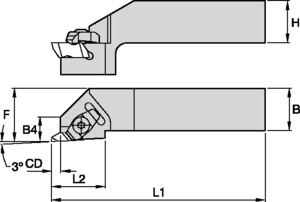

Part # catalog number H B F L1 L2 B4 CD gage insert clamp clamp screw clamp screw hex / Torx Plus jack screw
Right hand
3637547 NSRDH122B   .750   .750 1.000 4.50   .75 .40 .138 N.2R CM74 S310 7/64 —
3637499 NSRDH163C 1.000 1.000 1.250 5.00 1.25 .58 .210 N.3R CM72LP S2112 25 IP —
3637528 NSRDH163D 1.000 1.000 1.250 6.00 1.25 .58 .210 N.3R CM72LP S2112 25 IP —
3637511 NSRDH203D 1.250 1.250 1.500 6.00 1.25 .62 .210 N.3R CM72LP S2112 25 IP S965
3637530 NSRDH204D 1.250 1.250 1.500 6.00 1.38 .62 .294 N.4R CM72LP S2112 25 IP S965
Left hand
3637518 NSLDH203D 1.250 1.250 1.500 6.00 1.25 .62 .210 N.3L CM73LP S2112 25 IP S965
NOTE: F dimension shown over N-style gage insert.
