TopThread™ - Toolholders
NS





Right Hand Tool

    CLICK TOOL NUMBERS TO ORDER

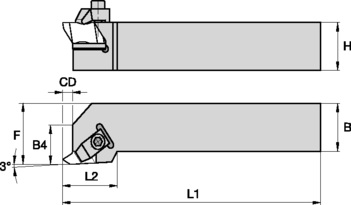

Part # catalog number H B F L1 L2 B4 CD gage insert clamp clamp screw clamp screw hex / Torx Plus
Right hand
3632147 NSR062 .375 .375 .562 2.50 .75 .35 .138 N.2R CM74 S310 7/64
3639035 NSR082V .500 .500 .750 3.50 .75 .35 .138 N.2R CM74 S310 7/64
3639044 NSR102B .625 .625 .875 4.50 .75 .35 .138 N.2R CM74 S310 7/64
3639026 NSR122B .750 .750 1.000 4.50 .75 .35 .138 N.2R CM74 S310 7/64
3639025 NSR162C 1.000 1.000 1.250 5.00 .75 .35 .138 N.2R CM74 S310 7/64
3639027 NSR123A .750 .750 1.000 4.00 1.25 .50 .210 N.3R CM72LP S2112 25 IP
3639023 NSR123B .750 .750 1.000 4.50 1.25 .50 .210 N.3R CM72LP S2112 25 IP
3638592 NSR163C 1.000 1.000 1.250 5.00 1.25 .50 .210 N.3R CM72LP S2112 25 IP
3638591 NSR163D 1.000 1.000 1.250 6.00 1.25 .50 .210 N.3R CM72LP S2112 25 IP
3639028 NSR203D 1.250 1.250 1.500 6.00 1.25 .50 .210 N.3R CM72LP S2112 25 IP
3637506 NSR243D 1.500 1.500 2.000 6.00 1.38 .50 .210 N.3R CM72LP S2112 25 IP
3637535 NSR243E 1.500 1.500 2.000 7.00 1.38 .50 .210 N.3R CM72LP S2112 25 IP
3637496 NSR853D 1.250 1.000 1.250 6.00 1.25 .50 .210 N.3R CM72LP S2112 25 IP
3637509 NSR205D 1.250 1.250 1.500 6.00 2.00 .61 .415 N.5R CM80 S352 1/4
3637540 NSR245D 1.500 1.500 2.000 6.00 2.00 .61 .415 N.5R CM80 S352 1/4
Left hand
3632161 NSL062 .375 .375 .562 2.50 .75 .35 .138 N.2L CM75 S310 7/64
3637485 NSL082V .500 .500 .750 3.50 .75 .35 .138 N.2L CM75 S310 7/64
3637510 NSL102B .625 .625 .875 4.50 .75 .35 .138 N.2L CM75 S310 7/64
3632145 NSL122B .750 .750 1.000 4.50 .75 .35 .138 N.2L CM75 S310 7/64
3632138 NSL162C 1.000 1.000 1.250 5.00 .75 .35 .138 N.2L CM75 S310 7/64
3632152 NSL123A .750 .750 1.000 4.00 1.25 .50 .210 N.3L CM73LP S2112 25 IP
3639032 NSL123B .750 .750 1.000 4.50 1.25 .50 .210 N.3L CM73LP S2112 25 IP
3639029 NSL163C 1.000 1.000 1.250 5.00 1.25 .50 .210 N.3L CM73LP S2112 25 IP
3639024 NSL163D 1.000 1.000 1.250 6.00 1.25 .50 .210 N.3L CM73LP S2112 25 IP
3639037 NSL203D 1.250 1.250 1.500 6.00 1.25 .50 .210 N.3L CM73LP S2112 25 IP
3637515 NSL243D 1.500 1.500 2.000 6.00 1.38 .50 .210 N.3L CM73LP S2112 25 IP
3637548 NSL243E 1.500 1.500 2.000 7.00 1.38 .50 .210 N.3L CM73LP S2112 25 IP
3637508 NSL853D 1.250 1.000 1.250 6.00 1.25 .50 .210 N.3L CM73LP S2112 25 IP
3637536 NSL205D 1.250 1.250 1.500 6.00 2.00 .61 .415 N.5L CM81 S352 1/4
NOTE: F dimension shown over N-style gage insert.
