TopThread™ - Toolholders
NSU





Right Hand Tool

    CLICK TOOL NUMBERS TO ORDER

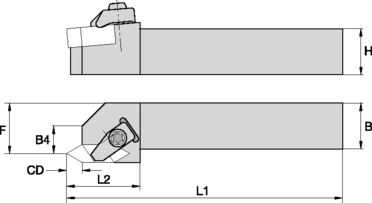

Part # catalog number H B F L1 L2 B4 CD gage insert clamp clamp screw hex/ Torx Plus
Right hand
3641698 NSUR124C .750 .750 .875 5.00 1.25 .50 .240 NTU4R CM72LP S2112 25 IP
3637545 NSUR164D 1.000 1.000 1.125 6.00 1.25 .50 .240 NTU4R CM72LP S2112 25 IP
Left hand
3641702 NSUL124C .750 .750 .875 5.00 1.25 .50 .240 NTU4L CM73LP S2112 25 IP
3641701 NSUL164D 1.000 1.000 1.125 6.00 1.25 .50 .240 NTU4L CM73LP S2112 25 IP
NOTE: F dimension shown over N-style gage insert.
NSU toolholders only for NTU4 threading inserts.
