Copy Mills • M100 Series
Cylindrical Shank RD1204

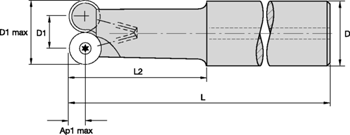

39427.jpg 38073.gif
  • General purpose face and copy milling.
  • Good variety of grades and geometries available.
  • Anti-rotation feature for top security.

    CLICK TOOL NUMBERS TO ORDER

M100 Tool Bodies • RD0802
order # catalog number D1 max D1 D L L2 Ap1 max Z Max Ramp
Angle		 max RPM coolant supply lbs.
2646579 M100D062Z02C062RD08L365 .625 .310 .625 3.650 1.740 .158 2 60.0° 31000 Yes   .25
2646580 M100D062Z02C062RD08L440 .625 .310 .625 4.400 2.490 .158 2 60.0° 31000 Yes   .30
2646581 M100D062Z02C075RD08L603 .625 .310 .750 6.030 4.000 .158 2 60.0° 31000 Yes 1.00
2646591 M100D075Z02C075RD08L378 .750 .435 .750 3.780 1.750 .158 2 22.0° 26000 Yes   .60
2646592 M100D075Z02C075RD08L453 .750 .435 .750 4.530 2.500 .158 2 22.0° 26000 Yes   .75
2646593 M100D075Z02C075RD08L628 .750 .435 .750 6.280 4.250 .158 2 22.0° 26000 Yes 1.10
M100 Tool Bodies • RD1204
order # catalog number D1 max D1 D L L2 Ap1 max Z Max Ramp
Angle		 max RPM coolant supply lbs.
2646607 M100D100Z02C100RD12L478 1.000 .528 1.000 4.780 2.500 .236 2 50.0° 23000 Yes 1.00
2646608 M100D100Z02C125RD12L715 1.000 .528 1.250 7.150 4.870 .236 2 50.0° 23000 Yes 1.60


M100 • Spare Parts

D1 max insert screw in.lbs Torx driver
1.000 12146034500 31 12148082400
1.250 12146034500 31 12148082400
1.000 12148038800 27 12148000600
