Copy Mills • M100 Series

39643.jpg 39148.jpg 39428.jpg 39147.jpg
0802 1003 1204 1605
  • General purpose face and copy milling.
  • Good variety of grades and geometries available.
  • Anti-rotation feature for top security.

    CLICK TOOL NUMBERS TO ORDER

M100 Tool Bodies • RD0802

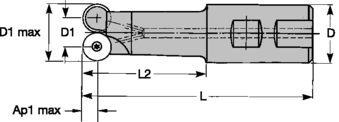

order # catalog number D1 max D1 D L L2 Ap1 max Z Max Ramp
Angle		 max RPM coolant supply lbs.
2646584 M100D062Z01W062RD08 .625 .310   .625 3.650 1.740 .158 1 10.0° 31000 Yes   .25
2646583 M100D062Z02W062RD08 .625 .310   .625 3.650 1.740 .158 2 60.0° 31000 Yes   .25
2646586 M100D062Z01W062RD08L440 .625 .310   .625 4.400 2.490 .158 1 10.0° 31000 Yes   .30
2646585 M100D062Z02W062RD08L440 .625 .310   .625 4.400 2.490 .158 2 60.0° 31000 Yes   .30
2646588 M100D062Z01W075RD08 .625 .310   .750 5.280 3.250 .158 1 10.0° 31000 Yes   .60
2646587 M100D062Z02W075RD08 .625 .310   .750 5.280 3.250 .158 2 60.0° 31000 Yes   .60
2646589 M100D062Z02W075RD08L603 .625 .310   .750 6.030 4.000 .158 2 60.0° 31000 Yes 1.00
2646590 M100D062Z02W100RD08 .625 .310 1.000 7.030 4.750 .158 2 60.0° 31000 Yes 1.20
2646595 M100D075Z02W075RD08 .750 .435   .750 3.780 1.750 .158 2 22.0° 26000 Yes   .66
2646596 M100D075Z02W075RD08L453 .750 .435   .750 4.530 2.500 .158 2 22.0° 26000 Yes   .85
2646597 M100D075Z02W100RD08 .750 .435 1.000 5.530 3.250 .158 2 22.0° 26000 Yes 1.00
2646598 M100D075Z02W100RD08L703 .750 .435 1.000 7.030 4.750 .158 2 22.0° 26000 Yes 1.20
M100 Tool Bodies • RD1003
order # catalog number D1 max D1 D L L2 Ap1 max Z Max Ramp
Angle		 max RPM coolant supply lbs.
2646599 M100D075Z02W075RD10   .750 .356   .750 3.780 1.750 .197 2 40.0° 26000 Yes   .66
2646600 M100D075Z02W075RD10L453   .750 .356   .750 4.530 2.500 .197 2 40.0° 26000 Yes   .85
2646601 M100D075Z02W100RD10   .750 .356 1.000 5.530 3.250 .197 2 40.0° 26000 Yes 1.00
2646602 M100D075Z02W100RD10L628   .750 .356 1.000 6.280 4.000 .197 2 40.0° 26000 Yes 1.10
2646603 M100D075Z02W100RD10L703   .750 .356 1.000 7.030 4.750 .197 2 40.0° 26000 Yes 1.20
2646604 M100D100Z02W100RD10 1.000 .606 1.000 5.280 3.000 .197 2 17.0° 23000 Yes 1.25
2646605 M100D100Z02W125RD10 1.000 .606 1.250 6.780 4.500 .197 2 17.0° 23000 Yes 1.75
2646606 M100D100Z02W125RD10L746 1.000 .606 1.250 7.460 5.190 .197 2 17.0° 23000 Yes 1.95
M100 Tool Bodies • RD1204
order # catalog number D1 max D1 D L L2 Ap1 max Z Max Ramp
Angle		 max RPM coolant supply lbs.
2646610 M100D100Z02W100RD12 1.000   .528 1.000 4.780 2.500 .236 2 50.0° 23000 Yes 1.00
2646611 M100D100Z02W100RD12L553 1.000   .528 1.000 5.530 3.250 .236 2 50.0° 23000 Yes 1.25
2646612 M100D100Z02W125RD12 1.000   .528 1.250 6.400 4.120 .236 2 50.0° 23000 Yes 1.60
2646613 M100D100Z02W125RD12L705 1.000   .528 1.250 7.050 4.870 .236 2 50.0° 23000 Yes 1.75
2646614 M100D100Z02W125RD12L715 1.000   .528 1.250 7.150 4.870 .236 2 50.0° 23000 Yes 1.75
2646616 M100D125Z02W125RD12 1.250   .778 1.250 5.400 3.120 .236 2 23.0° 19000 Yes 1.40
2646617 M100D125Z02W125RD12L615 1.250   .778 1.250 6.150 3.870 .236 2 23.0° 19000 Yes 1.60
2646618 M100D125Z02W150RD12 1.250   .778 1.500 7.250 4.560 .236 2 23.0° 19000 Yes 2.10
2646619 M100D125Z02W150RD12L800 1.250   .778 1.500 8.000 5.310 .236 2 23.0° 19000 Yes 2.50
2646621 M100D150Z03W125RD12 1.500 1.028 1.250 5.650 3.370 .236 3 27.0° 17000 Yes 1.80
2646622 M100D150Z03W125RD12L715 1.500 1.028 1.250 7.150 4.870 .236 3 27.0° 17000 Yes 2.25
M100 Tool Bodies • RD1605
order # catalog number D1 max D1 D L L2 Ap1 max Z Max Ramp
Angle		 max RPM coolant supply lbs.
2646623 M100D150Z02W125RD16 1.500 .870 1.250 5.400 3.120 .315 2 27.0° 17000 Yes   .65
2646624 M100D150Z02W125RD16L615 1.500 .870 1.250 6.150 3.870 .315 2 27.0° 17000 Yes   .65
2646625 M100D150Z02W150RD16 1.500 .870 1.500 7.250 4.560 .315 2 27.0° 17000 Yes 2.00
2646626 M100D150Z02W150RD16L800 1.500 .870 1.500 8.000 5.310 .315 2 27.0° 17000 Yes 1.20


M100 • Spare Parts

D1 max insert screw in.lbs Torx driver
.625 12148001300 27 12148086600
.750 12148001300 27 12148086600
.750 12148036700 27 12148000600
1.000 12148036700 27 12148000600
1.000 12148038800 27 12148000600
1.250 12148038800 27 12148000600
1.500 12148038800 27 12148000600
1.500 12148007200 35 12148007500
