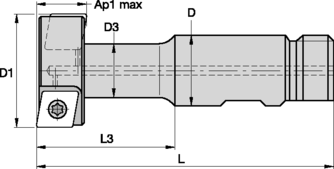

Slotting Mills • M16 Series
Weldon Shank
|
|
|
|
 |
 |
|
|
| |
|
|
|
|
|
|
| M16 Slotting Mills |
| order # |
catalog number |
D1 |
D |
D3 |
L |
L3 |
Ap1 max |
Z |
Z U |
insert 1 |
coolant supply |
kg |
| 2021380 |
12391602600 |
25 |
16 |
13 |
80 |
32 |
11,0 |
4 |
2 |
CPNT060204T |
Yes |
0,1 |
| 2021381 |
12391603000 |
32 |
16 |
15 |
90 |
42 |
13,9 |
4 |
2 |
CPNT080308T |
Yes |
0,2 |
| 2021382 |
12391603400 |
40 |
25 |
19 |
105 |
49 |
17,9 |
4 |
2 |
CPNT09T308T |
Yes |
0,4 |
| 2021383 |
12391603800 |
50 |
32 |
25 |
120 |
60 |
21,9 |
4 |
2 |
CPNT120408T |
Yes |
0,7 |
| D1 max |
insert screw |
Nm |
Torx driver |
| 25 |
12148068700 |
1,0 |
12148086600 |
| 32 |
12148067200 |
2,0 |
12148086600 |
| 40 |
12148038800 |
3,0 |
12148000600 |
| 50 |
12148007200 |
4,0 |
12148007500 |
|
|
