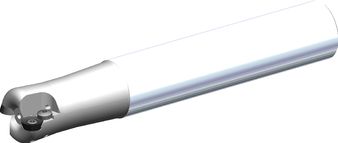

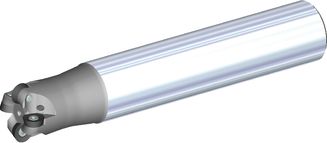

Copy Mills • M170 Series

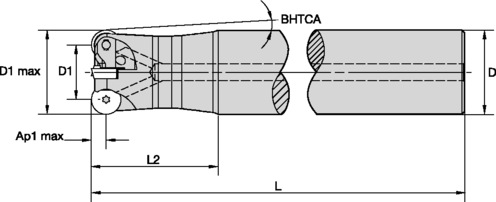

RD0702, RD07T1		 39789.gif

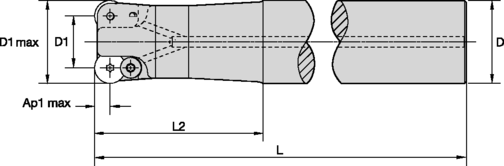

RD12T3		 39526.gif

  • Premium nickel-coated bodies.
  • Designed for maximum performance.
  • Ideally suited for die and mold manufacturing.

    CLICK TOOL NUMBERS TO ORDER

M170 Tool Bodies • RD0702
order # catalog number D1 max D1 D L L2 BHTCA Ap1 max Z Max Ramp
Angle		 max RPM coolant supply kg
3929404 M170D015Z02A16RD07L110 15   8 16 110 60 .5° 3,5 2 18.0° 21200 Yes 0,1
3929405 M170D015Z02A16RD07L150 15   8 16 150 60 .5° 3,5 2 18.0° 21200 Yes 0,2
3929406 M170D016Z03A16RD07L110 16   9 16 110 20 - 3,5 3   9.0° 21200 Yes 0,2
3929407 M170D016Z02A16RD07L150 16   9 16 150 30 - 3,5 2   9.0° 21200 Yes 0,2
3929408 M170D020Z04A20RD07L115 20 13 20 115 30 - 3,5 4 12.0° 10600 Yes 0,3
3929409 M170D020Z03A20RD07L140 20 13 20 140 40 - 3,5 3 12.0° 10600 Yes 0,3
M170 Tool Bodies • RD07T1
order # catalog number D1 max D1 D L L2 BHTCA Ap1 max Z Max Ramp
Angle		 max RPM coolant supply kg
3935339 M170D012Z02A12RD07TL100 12 5 12 100 20 - 3,5 2 22.0° 26200 Yes 0,1
3935340 M170D012Z02A16RD07TL120 12 5 16 120 60 2.0° 3,5 2 22.0° 26200 Yes 0,1
3935341 M170D012Z02A16RD07TL140 12 5 16 140 80 1.5° 3,5 2 22.0° 26200 Yes 0,2
3935342 M170D015Z03A16RD07TL130 15 8 16 130 60   .5° 3,5 3 11.0° 21200 Yes 0,1
M170 Tool Bodies • RD12T3
order # catalog number D1 max D1 D L L2 BHTCA Ap1 max Z Max Ramp
Angle		 max RPM coolant supply kg
3930962 M170D032Z02A32RD12L200 32 20 32 200 65 - 6,0 2 12.0° 9500 Yes 1,1
3930964 M170D032Z02A32RD12L300 32 20 32 300 65 - 6,0 2 12.0° 9500 Yes 1,7
3930966 M170D035Z02A32RD12L300 35 23 32 300 40 - 6,0 2 11.0° 9100 Yes 1,8


M170 • Spare Parts

D1 max insert screw Nm Torx driver clamp screw
12 193.364 1,0 12147549000
15 193.364 1,0 12147549000
15 193.341 1,0 12147549000
16 193.341 1,0 12147549000
20 193.341 1,0 12147549000
32 193.342 3,5 12148082400 193.338
35 193.342 3,5 12148082400 193.338
