Copy Mills • M170 Series
M170 Scew On

RD0702, RD07T1, RD1003



RD12T3		 39530.gif

RD1604		 40234.gif

  • Premium nickel-coated bodies.
  • Designed for maximum performance.
  • Ideally suited for die and mold manufacturing.

    CLICK TOOL NUMBERS TO ORDER

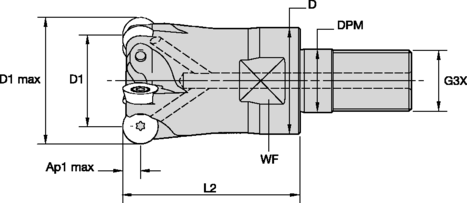

M170 Tool Bodies • RD0702
order # catalog number D1 max D1 D DPM G3X L2 WF Ap1 max Z Max Ramp Angle max RPM coolant supply kg
3926607 M170D015Z02M08RD07 15   8 13   8,5 M8 23 10 3,5 2 18.0° 21200 Yes 0,03
3926608 M170D016Z03M08RD07 16   9 13   8,5 M8 23 10 3,5 3   9.0° 21200 Yes 0,03
3926609 M170D020Z04M10RD07 20 13 18 10,5 M10 30 14 3,5 4 12.5° 19600 Yes 0,06
3926610 M170D025Z05M12RD07 25 18 21 12,5 M12 35 19 3,5 5   8.5° 12700 Yes 0,10
3926611 M170D030Z05M16RD07 30 23 29 17,0 M16 43 22 3,5 5   6.5° 10600 Yes 0,20
3926612 M170D035Z06M16RD07 35 28 29 17,0 M16 43 22 3,5 6   4.8°   9900 Yes 0,23
M170 Tool Bodies • RD07T1
order # catalog number D1 max D1 D DPM G3X L2 WF Ap1 max Z Max Ramp Angle max RPM coolant supply kg
3935336 M170D012Z02M06RD07T 12 5   10 6,5 M6 18   7 3,5 2 22.0° 26200 Yes 0,02
3935337 M170D012Z02M08RD07T 12 5 13 8,5 M8 23 10 3,5 2 22.0° 26200 Yes 0,02
3935338 M170D015Z03M08RD07T 15 8 13 8,5 M8 18 10 3,5 3 11.0° 21200 Yes 0,02
M170 Tool Bodies • RD1003
order # catalog number D1 max D1 D DPM G3X L2 WF Ap1 max Z Max Ramp Angle max RPM coolant supply kg
3934647 M170D020Z02M10RD10 20 10 18 10,5 M10 30 15 5,0 2 20.0° 15900 Yes 0,1
3934648 M170D025Z02M12RD10 25 15 21 12,5 M12 35 19 5,0 2   8.0° 12800 Yes 0,1
3934649 M170D025Z03M12RD10 25 15 21 12,5 M12 35 19 5,0 3   8.0° 12800 Yes 0,1
3934650 M170D030Z04M16RD10 30 20 29 17,0 M16 43 22 5,0 4 10.0° 10600 Yes 0,2
3934651 M170D035Z05M16RD10 35 25 29 17,0 M16 45 22 5,0 5   8.5°   9100 Yes 0,2
3934652 M170D042Z06M16RD10 42 32 29 17,0 M16 45 22 5,0 6   6.0°   7800 Yes 0,3

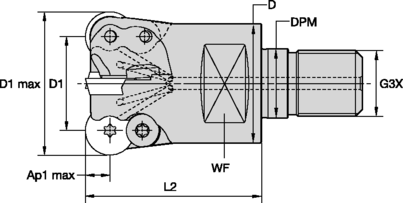

M170 Tool Bodies • RD12T3
order # catalog number D1 max D1 D DPM G3X L2 WF Ap1 max Z Max Ramp Angle max RPM coolant supply kg
3930950 M170D024Z02M12RD12 24 12 21 12,5 M12 35 19 6,0 2 15.0° 13200 Yes 0,1
3930954 M170D035Z03M16RD12 35 23 29 17,0 M16 43 22 6,0 3 11.0°   9900 Yes 0,2
3930956 M170D035Z04M16RD12 35 23 29 17,0 M16 43 22 6,0 4 10.5°   9900 Yes 0,2
3930958 M170D042Z05M16RD12 42 30 29 17,0 M16 43 22 6,0 5   7.2°   7500 Yes 0,3

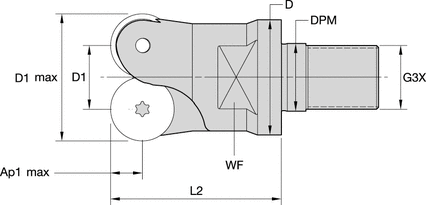

M170 Tool Bodies • RD1604
order # catalog number D1 max D1 D DPM G3X L2 WF Ap1 max Z Max Ramp Angle max RPM coolant supply kg
3926601 M170D032Z02M16RD16 32 16 29 17,0 M16 43 22 8,0 2 20.0° 9950 Yes 0,2


M170 • Spare Parts

D1 max insert screw Nm Torx driver clamp screw
15 193.341 1,0   12147549000
16 193.341 1,0   12147549000
20 193.341 1,0   12147549000
25 193.341 1,0   12147549000
30 193.341 1,0   12147549000
35 193.341 1,0   12147549000
12 193.364 1,0   12147549000
15 193.364 1,0   12147549000
20 193.342 3,5   12148082400
25 193.342 3,5   12148082400
30 193.342 3,5   12148082400
35 193.342 3,5   12148082400
42 193.342 3,5   12148082400
24 193.342 3,5 12148082400 193.338
35 193.342 3,5 12148082400 193.338
35 193.342 3,5 12148082400 193.338
42 193.342 3,5 12148082400 193.338
32 193.343 6,0 12148099400
