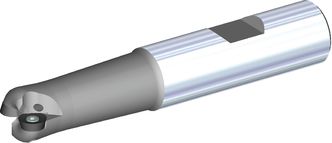

Copy Mills • M170 Series
M170 Weldon Shank

RD0702, RD1003
RD12T3
  • Premium nickel-coated bodies.
  • Designed for maximum performance.
  • Ideally suited for mold and die manufacturing.

    CLICK TOOL NUMBERS TO ORDER

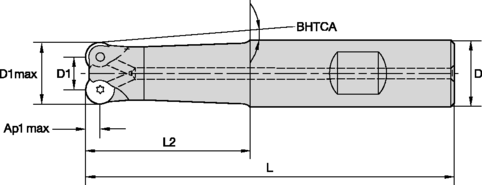

M170 Tool Bodies • RD0702

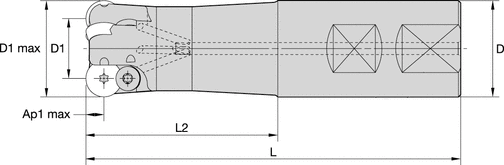

order # catalog number D1 max D1 D L L2 BHTCA Ap1 max Z Max Ramp Angle max RPM coolant supply kg
3929403 M170D015Z02B16RD07 15 8 16 90 40 1.0° 3,5 2 18.0° 21200 Yes 0,1
M170 Tool Bodies • RD1003
order # catalog number D1 max D1 D L L2 Ap1 max Z Max Ramp Angle max RPM coolant supply kg
3940703 M170D020Z02B20RD10 20 10 20 110 40 5,0 2 20.0° 15900 Yes 0,2
3940708 M170D025Z03B25RD10 25 15 25 110 40 5,0 3   9.0° 12900 Yes 0,4
M100 Tool Bodies • RD1213
order # catalog number D1 max D1 D L L2 Ap1 max Z Max Ramp Angle max RPM coolant supply kg
2646610 M170D032Z03B32RD12 32 20 32 125 64 6,0 3 12.0° 9500 Yes 0,6


M170 • Spare Parts

D1 max insert screw in.lbs Torx driver clamp screw
15 193.341 1,0 12147549000
20 193.342 3,5 12148082400
25 193.342 3,5 12148082400
32 193.342 3,5 12148082400 193.338
