Chamfer Mills • M25 Series
M25 Cylindrical Shank
39173.jpg 38194.gif

  • Chamfer milling in steel, stainless, and cast Iron.

    CLICK TOOL NUMBERS TO ORDER

M25 Tool Bodies

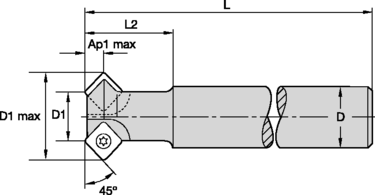

order # catalog number D1 D1 max D L L2 Ap1 max Z insert 1 coolant supply kg
2022634 12292550400 16 29 16 200 27 6,4 2 SD..0903.. No 0,4
2022635 12292550800 25 38 25 200 40 6,4 2 SD..0903.. No 0,7
2022636 12292551000 32 45 32 200 40 6,4 3 SD..0903.. No 1,2


M25 • Spare Parts

D1 max insert screw Nm Torx driver
16 12148095100 3,0 12148000600
25 12148095100 3,0 12148000600
32 12148095100 3,0 12148000600
