Copy Mills • M270 Series
M270 Ball Nosse Cylindrical Shank


  • Rough, semi-finish, and finish with one system.
  • Through tool coolant.
  • Carbide shank.
  • Secure and rigid insert clamping.

    CLICK TOOL NUMBERS TO ORDER

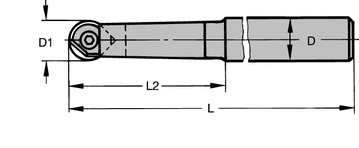

M270 Ball Nose Tool Bodies
order # catalog number D1 D L L2 Z Z U insert max RPM coolant supply lbs.
2639138 M270BD037C050L550   .375   .500 5.550 1.800 1 2 M270B.0375 57000 No   .22
2639139 M270BD050C050L575   .500   .500 5.750 2.000 1 2 M270B.0500 55000 No   .22
2639140 M270BD062C062L600   .625   .625 6.000 2.300 1 2 M270B.0625 53000 No   .44
2639141 M270BD075C075L700   .750   .750 7.000 2.800 1 2 M270B.0750 52000 No   .77
2639142 M270BD100C100L800 1.000 1.000 8.000 3.500 1 2 M270B.1000 50000 No 1.54
2639253 M270BD037C050L555C .375 .500 5.550 1.800 1 2 M270B.0375 57000 Yes   .44
2639254 M270BD050C050L575C .500 .500 5.750 2.000 1 2 M270B.0500 55000 Yes   .55
2639255 M270BD062C062L600C .625 .625 6.000 2.300 1 2 M270B.0625 53000 Yes   .88
2639256 M270BD075C075L700C .750 .750 7.000 2.800 1 2 M270B.0750 52000 Yes 1.32


Ball Nose M270 • Spare Parts

D1 max insert screw in.lbs Torx driver
  .375 12748610500 18 12148788900
  .500 12748610600 18 12148788900
  .625 12748610700 44 12148099300
  .750 12748610800 44 12148099300
