Copy Mills • M270 Series

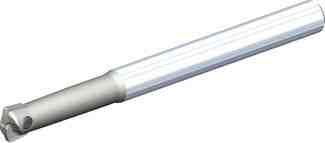

M270 High-Feed Carbide Cylindrical Shank


  • High metal removal rates.
  • Excellent in long reach applications.
  • Carbide shank.

    CLICK TOOL NUMBERS TO ORDER


M270 Ball Nose Tool Bodies
order # catalog number D1 D D3 L L2 Ap1 max Z Z U insert max RPM coolant supply lbs.
2639258 M270TD037C050L555C .375 .500 .345 5.550 1.800 .024 1 2 M270HF0375 57000 Yes   .44
2639259 M270TD050C050L575C .500 .500 .417 5.750 2.000 .024 1 2 M270HF0500 55000 Yes   .55
2639260 M270TD062C062L600C .625 .625 .559 6.000 2.300 .035 1 2 M270HF0625 53000 Yes   .88
2639261 M270TD075C075L700C .750 .750 .707 7.000 2.800 .043 1 2 M270HF0750 52000 Yes 1.32


Ball Nose M270 • Spare Parts

D1 max insert screw in.lbs Torx driver
  .375 12748610500 18 12148788900
  .500 12748610600 18 12148788900
  .625 12748610700 44 12148099300
  .750 12748610800 44 12148099300
