Helical Mills • M300 Series
M300 Weldon shank

39180.jpg 38210.gif

  • General-purpose helical mill.
  • First choice for small diameter.
  • Slot and profile milling.

    CLICK TOOL NUMBERS TO ORDER


M300 Tool Bodies

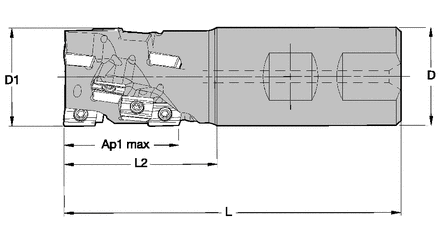

order # catalog number D1 D L L2 Ap1 max Z Z U max RPM coolant supply kg
2021407 12393001200 25 25   96 40 28,0 6 2 26100 Yes 0,3
2021408 12393001400 32 32 110 50 37,0 12 3 23000 Yes 0,6
2021409 12393001600 40 32 120 60 46,0 15 3 20600 Yes 0,8
NOTE: Standard milling cutters will accept insert nose radii up to 2mm without modification.


M300 • Spare Parts

D1 insert screw Nm Torx driver
25 12748610000 4,0 12148788900
32 12748610000 4,0 12148788900
40 12748610000 4,0 12148788900
