Helical Mills • M300 Series
M300+ Integral
39663.jpg 39463.gif

  • General purpose helical mill.
  • First choice for small diameter.
  • Slot and profile milling.

    CLICK TOOL NUMBERS TO ORDER

M300+ • Integral

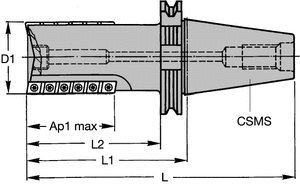

order # catalog number D1 L L1 L2 Ap1 max Z Z U CSMS max RPM coolant supply kg
2021412 12393021000 40 153 85 2 46,0 15 3 DV40 20600 Yes 1,3
NOTE: Standard milling cutters will accept insert nose radii up to 2mm without modification.


M300+ Integral • Spare Parts

D1 insert screw Nm Torx driver
40 12748610000 4,0 12148788900
