Face Mills • M640 Series
M640 • Weldon® Shank
39189.jpg 38231.gif

  • 6 cutting edges.
  • Highly positive rake for low-power machines or light fixture.
  • Geometries and grades for all applications.

    CLICK TOOL NUMBERS TO ORDER

M640 Tool Bodies

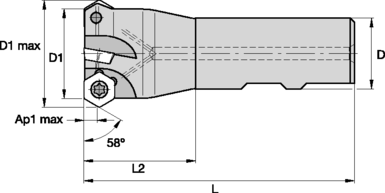

order # catalog number D1 D1 max D L L2 Ap1 max Z max RPM coolant supply lbs.
2961908 M640D125Z03W125HP06 1.250 1.500 1.250 4.000 1.719 .189 3 13500 Yes 1.30
2961909 M640D150Z04W125HP06 1.500 1.750 1.250 4.000 1.719 .189 4 12000 Yes 1.30


M640 • Spare Parts

D1 insert screw in.lbs Torx driver
1.250 12148038800 36 12148000600
1.500 12148038800 36 12148000600
