Face Mills • M660 Series
M660 Weldon® Shank SN1205
39185.jpg 38235.gif

  • 4 cutting edges.
  • Strong tool body design.
  • Excellent chip evacuation.

    CLICK TOOL NUMBERS TO ORDER

M660 Tool Bodies • SN1205

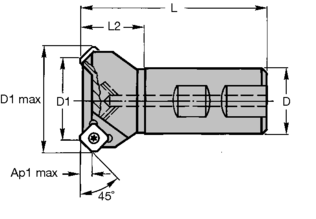

order # catalog number D1 D1 max D L L2 Ap1 max Z max RPM coolant supply lbs.
2646651 M660D100Z02W100SN12 1.000 1.540 1.000 3.750 1.470 .250 2 15000 Yes   .70
2646652 M660D125Z03W125SN12 1.250 1.790 1.250 4.000 1.720 .250 3 13500 Yes   .70
2646653 M660D150Z04W125SN12 1.500 2.040 1.250 4.000 1.720 .250 4 12000 Yes 1.40
2646654 M660D200Z04W125SN12 2.000 2.520 1.250 4.000 1.720 .250 4 10500 Yes 1.80


M660 • Spare Parts

D1 insert screw in.lbs Torx driver
1.000 12148007300 31 12148007600
1.250 12148007300 31 12148007600
1.500 12148007300 31 12148007600
2.000 12148007300 31 12148007600
