90° Shoulder Mills • M6800 Series
M6800M Shell Mills

  • 90° shoulders.
  • Excellent surface finish.
  • Ramping capability.

    CLICK TOOL NUMBERS TO ORDER

M6800M Tool Bodies

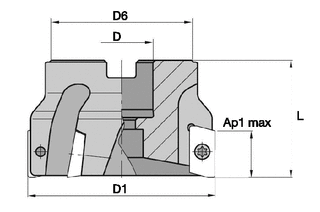

order # catalog number D1 D D6 L Ap1 max Z Max Ramp
Angle		 max RPM coolant supply lbs.
3577753 15396450400 1.500   .750 1.260 1.575 .394 5 - 30700 Yes   .64
3577754 15396451000 2.000   .750 1.600 1.575 .394 5 - 22300 Yes   .88
3577755 15396451600 2.500   .750 1.600 1.575 .394 6 - 20400 Yes 1.71
3577756 15396452200 3.000 1.000 1.917 1.969 .394 7 - 18500 Yes 2.38
3577757 15396452800 4.000 1.500 2.620 2.480 .394 9 - 16800 Yes 4.39
NOTE: Standard milling cutters will accept insert nose radii up to .079" without modification.


M6800M • Spare Parts

D1 insert screw in.lbs Torx driver
1.500 12146120900 10 12148086600
2.000 12146120900 10 12148086600
2.500 12146120900 10 12148086600
3.000 12146120900 10 12148086600
4.000 12146120900 10 12148086600
