90° Shoulder Mills • M6800 Series
M6800M Weldon® Shank

  • 90° shoulders.
  • Excellent surface finish.
  • Ramping capability.

    CLICK TOOL NUMBERS TO ORDER

M6800M Tool Bodies

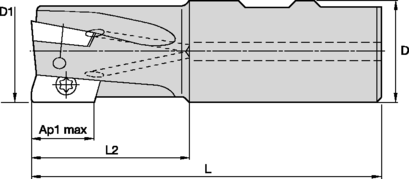

order # catalog number D1 D L L2 Ap1 max Z Max Ramp
Angle		 max RPM coolant supply lbs.
3577759 15396461600   .625   .500 2.750   .925 .394 2 3.0° 43750 No .42
3577760 15396461800   .625   .625 3.000 1.004 .394 2 3.0° 43750 Yes .56
3577761 15396462400   .750   .625 3.050 1.043 .394 3 5.0° 41000 Yes .48
3577762 15396462800   .750   .750 3.250 1.201 .394 3 5.0° 41000 Yes .60
3577764 15396463800 1.000   .750 3.250 1.161 .394 3 2.5° 37500 Yes .88
3577765 15396464200 1.000 1.000 3.750 1.280 .394 3 2.5° 37500 Yes .96
NOTE: Standard milling cutters will accept insert nose radii up to .079" without modification.


M6800M • Spare Parts

D1 insert screw in.lbs Torx driver
  .625 12146120900 10 12148086600
  .750 12146120900 10 12148086600
1.000 12146120900 10 12148086600
