90° Shoulder Mills • M6800 Series
M6800S Cylindrical Shank

39208.jpg 38664.gif
  • 90° shoulders.
  • Excellent surface finish.
  • Ramping capability.

    CLICK TOOL NUMBERS TO ORDER

M6800S Tool Bodies

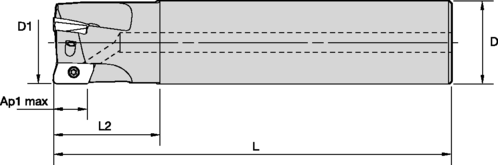

order # catalog number D1 D L L2 Ap1 max Z Max Ramp
Angle		 max RPM coolant supply lbs.
3786361 15396440800   .500   .500 3.270   .717 .236 2 2.0° 45800 Yes   .21
3786362 15396441000   .625   .625 3.500   .795 .236 3 3.0° 43300 Yes   .32
3786383 15396445000   .625   .625 5.100 2.165 .236 3 3.0° 43300 Yes   .43
3786384 15396441800   .750   .625 4.000   .807 .236 4 2.0° 40900 Yes   .38
3786385 15396442200   .750   .750 4.000   .795 .236 4 2.0° 40900 Yes   .50
3786387 15396446200   .750   .750 5.500 2.362 .236 4 2.0° 40900 Yes   .66
3786386 15396442400   .750   .750 4.000   .795 .236 5 2.0° 40900 Yes   .50
3786390 15396443200 1.000   .750 4.500   .984 .236 5 1.3° 36900 Yes   .62
3786388 15396442800 1.000 1.000 4.500   .992 .236 5 1.3° 36900 Yes   .98
3786391 15396447200 1.000 1.000 6.299 2.362 .236 5 1.3° 36900 Yes 1.34
3786389 15396443400 1.000 1.000 4.500   .992 .236 7 1.3° 36900 Yes   .96


M6800S • Spare Parts

D1 insert screw in.lbs Torx driver
  .500 12146120600 4 12148005900
  .625 12146120700 4 12148005900
  .750 12146120700 4 12148005900
1.000 12146120700 4 12148005900
