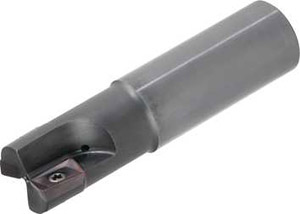

90° Shoulder Mills • M680 Series
M680 Cylindrical Shank

  • General-purpose shoulder mill.
  • Excellent selection of grades and geometries.
  • Strong insert providing high reliability.

    CLICK TOOL NUMBERS TO ORDER

M680 Tool Bodies

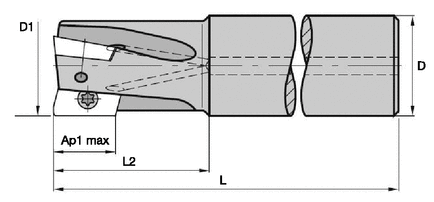

order # catalog number D1 D L L2 Ap1 max Z max RPM coolant supply lbs.
2004577 M680D100Z02C100XP16L400 1.000 1.000   4.000 1.710 .550 2 17500 Yes   .75
2004740 M680D100Z02C100XP16L800 1.000 1.000   8.000 2.250 .550 2 17500 Yes 1.70
2004774 M680D125Z03C125XP16L400 1.250 1.250   4.000 1.710 .550 3 15500 Yes 1.10
2004775 M680D125Z03C125XP16L1000 1.250 1.250 10.000 3.000 .550 3 15500 Yes 2.72
2004118 M680D150Z04C125XP16L450 1.500 1.250   4.250 2.000 .550 4 14000 Yes 1.70
2004119 M680D150Z03C125XP16L1000 1.500 1.250 10.000 1.250 .550 3 14000 Yes 2.80
NOTE: Standard milling cutters will accept insert nose radii up to .079" without modification.


M680 • Spare Parts

D1 insert screw in.lbs Torx driver
1.000 12148038800 36 12148000600
1.250 12148038800 36 12148000600
1.500 12148038800 36 12148000600
