90° Shoulder Mills • M680 Series
M680 Screw On

39675.jpg 38244.gif

  • General-purpose shoulder mill.
  • Excellent selection of grades and geometries.
  • Strong insert providing high reliability.

    CLICK TOOL NUMBERS TO ORDER


M680 Tool Bodies

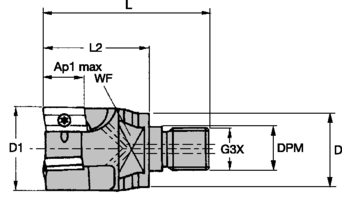

order # catalog number D1 D DPM G3X L L2 WF Ap1 max Z max RPM coolant supply lbs.
2646676 M680D097Z02M12XP16   .975   .827 .492 M12 2.366 1.500   .750 .550 2 17500 No .44
2646686 M680D100Z02M12XP16 1.000   .827 .492 M12 2.366 1.500   .750 .550 2 17500 Yes .44
2646699 M680D125Z03M16XP16 1.250 1.142 .669 M16 2.715 1.750 1.000 .550 3 15500 Yes .66
2646712 M680D150Z03M16XP16 1.500 1.142 .669 M16 2.715 1.750 1.000 .550 3 14000 Yes .71
NOTE: Standard milling cutters will accept insert nose radii up to .079" without modification.


M680 • Spare Parts

D1 insert screw Nm Torx driver
  .975 12148038800 36 12148000600
1.000 12148038800 36 12148000600
1.250 12148038800 36 12148000600
1.500 12148038800 36 12148000600
