Classic Mills • M68 Series
M68 Shell Mills


SE1203, SE1204

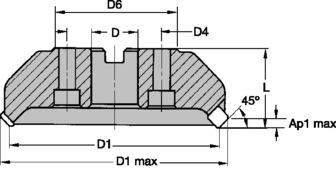

SE1504		 38252.gif
  • General-purpose face milling.
  • Grades for all materials.

    CLICK TOOL NUMBERS TO ORDER


M68 Tool Bodies • SE1203
order # catalog number D1 D1 max D D4 D6 L Ap1 max Z max RPM coolant supply kg
2004577 12396804000   50   64 22 -   50 40 6,0 4 7000 No   0,6
2004740 12396804400   63   77 22 -   50 40 6,0 5 6000 No   0,8
2004774 12396804600   80   94 27 -   60 50 6,0 8 5500 No   1,5
2004775 12396804800   80   94 27 -   60 50 6,0 6 5500 No   1,4
2004118 12396805000 100 114 32 -   78 50 6,0 10 5000 No   1,9
2004119 12396805200 100 114 32 -   78 50 6,0 6 5000 No   1,8
2004135 12396805400 125 139 40 -   89 63 6,0 12 4500 No   3,4
2004136 12396805600 125 139 40 -   89 63 6,0 8 4500 No   3,3
2004142 12396805800 160 174 40   66,7   90 63 6,0 16 4000 No   4,7
2004153 12396806000 160 174 40   66,7   90 63 6,0 10 4000 No   4,6
2004259 12396806200 200 214 60 101,6 130 63 6,0 20 3500 No   8,6
2004260 12396806400 200 214 60 101,6 130 63 6,0 12 3500 No   8,2
2004355 12396806800 250 264 60 101,6 130 63 6,0 16 3000 No 13,1
2004398 12396807200 315 329 60 101,6 230 80 6,0 20 2800 No 29,7
M68 Tool Bodies • SE1204
order # catalog number D1 max D1 D D4 D6 L Ap1 max Max Ramp
Angle		 max RPM coolant supply lbs.
2033482 12396814000   50   64 22 -   50 40 6,0 4 7000 No   0,6
2004776 12396814600   80   94 27 -   60 50 6,0 8 5500 No   1,5
2004777 12396814800   80   94 27 -   60 50 6,0 6 5500 No   1,4
2004120 12396815000 100 114 32 -   78 50 6,0 10 5000 No   1,9
2004121 12396815200 100 114 32 -   78 50 6,0 6 5000 No   1,8
2004137 12396815400 125 139 40 -   89 63 6,0 12 4500 No   3,4
2004138 12396815600 125 139 40 -   89 63 6,0 8 4500 No   3,3
2004154 12396815800 160 174 40   66,7   90 63 6,0 16 4000 No   4,7
2004155 12396816000 160 174 40   66,7   90 63 6,0 10 4000 No   4,6
2004261 12396816200 200 214 60 101,6 130 63 6,0 20 3500 No   8,6
2004262 12396816400 200 214 60 101,6 130 63 6,0 12 3500 No   8,2
2004356 12396816800 250 264 60 101,6 130 63 6,0 16 3000 No 13,1
M68 Tool Bodies • SE1504
order # catalog number D1 max D1 D D4 D6 L Ap1 max Max Ramp
Angle		 max RPM coolant supply lbs.
2004778 12396824800   80   98 27 -   60 50 8,3 5 4500 No   1,5
2004122 12396825200 100 118 32 -   78 50 8,3 6 4000 No   2,0
2004139 12396825600 125 143 40 -   89 63 8,3 7 3700 No   3,4
2004156 12396826000 160 178 40   66,7   90 63 8,3 8 3200 No   5,1
2004273 12396826400 200 218 60 101,6 130 63 8,3 10 2900 No   8,7
2004357 12396826800 250 268 60 101,6 130 63 8,3 12 2500 No 13,4
2004399 12396827200 315 333 60 101,6 230 80 8,3 16 2300 No 29,3


M68 • Spare Parts

D1 max wedge screw Nm hex wrench wedge
  50 12148574900 7,0 12148044900 12748305600
  63 12148574900 7,0 12148044900 12748305600
  80 12748600900 7,0 12148044900 12748305800
100 12748600900 7,0 12148044900 12748305800
125 12748600900 7,0 12148044900 12748305800
160 12748600900 7,0 12148044900 12748306000
200 12748600900 7,0 12148044900 12748306000
250 12748600900 7,0 12148044900 12748306000
315 12748600900 7,0 12148044900 12748306000
  50 12148574900 7,0 12148044900 12748306200
  80 12748600900 7,0 12148044900 12748306400
100 12748600900 7,0 12148044900 12748306400
125 12748600900 7,0 12148044900 12748306400
160 12748600900 7,0 12148044900 12748306600
200 12748600900 7,0 12148044900 12748306600
250 12748600900 7,0 12148044900 12748306600
  80 12748601400 16,0 12148045000 12748306800
100 12748601400 16,0 12148045000 12748306800
125 12748601400 16,0 12148045000 12748306800
160 12748601400 16,0 12148045000 12748307000
200 12748601400 16,0 12148045000 12748307000
250 12748601400 16,0 12148045000 12748307000
315 12748601400 16,0 12148045000 12748307000
