90° Shoulder Mills • M690 Series
M690 Weldon Shank SD1204

  • Four cutting edges.
  • 90° shoulders.
  • Excellent for slot and profile milling.

    CLICK TOOL NUMBERS TO ORDER

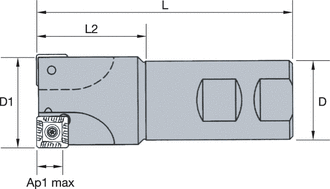

M690 Tool Bodies • SD1204
order # catalog number D1 D L L2 Ap1 max Z max RPM coolant supply lbs.
2646782 M690D150Z03W125SD12 1.500 1.250 4.000 1.720 .400 3 22400 Yes 1.40
2646784 M690D200Z04W125SD12 2.000 1.250 4.000 1.720 .400 4 22400 Yes 1.80


M690 • Spare Parts

D1 insert screw in.lbs Torx driver
1.500 12148037700 32 12148000600
2.000 12148037700 32 12148000600
