Slotting Mills • M94 Series
M94 Shell Mills

39653.jpg 38267.gif
  • 3 cutting edges per insert
  • Tangential mounted inserts
  • Shallow grooving and slotting

    CLICK TOOL NUMBERS TO ORDER

M94 Tool Bodies

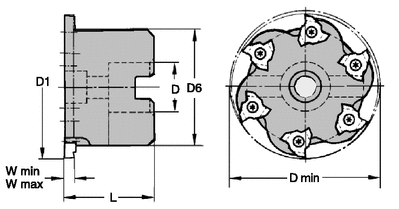

order # catalog number D1 D D min D6 L W min W max Z insert 1 coolant supply kg
3577759 12290911600 63 22   85 55 40 2,73 4,26 6 TNAX1604ZZ.. No 0,7
s 12290911800 80 27 102 68 50 4,26 5,23 6 TNAX2206ZZ.. No 1,3
NOTE: D min = minimum internal hole diameter required for clearance.


M94 • Spare Parts

D1 insert screw Nm Torx driver
63 12148095100 3,5 12148086600
80 12148007200 6,0 12148007500
