Copy Mills • M94 Series
M94 Weldon Shank

39222.jpg 39625.gif
  • High metal removal rates.
  • Excellent in long reach applications.
  • Rough and semi-finish applications.

    CLICK TOOL NUMBERS TO ORDER

M270 High-Feed Tool Bodies

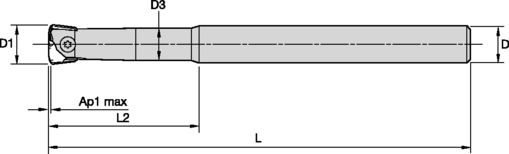

order # catalog number D1 D D3 D min L L2 W min W max Z insert 1 coolant supply kg
2022619 12290900800 25 25 21 34 100 44 2,10 2,73 3 TCAX1103ZZ.. No 0,4
2022620 12290901200 40 32 32 65 110 50 2,73 4,26 3 TNAX1604ZZ.. No 0,7
NOTE: D min = minimum internal hole diameter required for clearance.


M94 • Spare Parts

D1 insert screw Nm Torx driver
25 12148080000 1,0 12148086600
40 12148067200 3,5 12148086600
