Face Mills • Victory™ M1200 Series
Victory M1200 Shell Mills

  • Twelve cutting edges.
  • First choice for general face milling.
  • Low cutting forces for maximum productivity.

    CLICK TOOL NUMBERS TO ORDER

Victory M1200 Tool Bodies

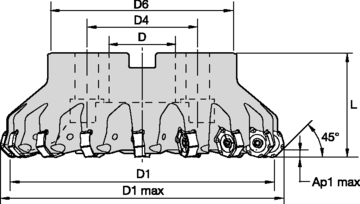

order # catalog number D1 D1 max D D4 D6 L Ap1 max Z max RPM coolant supply lbs.
3323871 M1200D200Z04S075HN09   2.000   2.434   .750 - 1.750 1.570 .177 4 12500 Yes     .81
3323872 M1200D200Z05S075HN09   2.000   2.434   .750 - 1.750 1.570 .177 5 12500 Yes     .82
3650539 M1200D250Z04S075HN09   2.500   2.933   .750 - 2.144 1.570 .177 4 10000 Yes   1.35
3323873 M1200D250Z06S075HN09   2.500   2.933   .750 - 2.144 1.570 .177 6 10000 Yes   1.32
3323874 M1200D250Z07S075HN09   2.500   2.933   .750 - 2.144 1.570 .177 7 10000 Yes   1.34
3650540 M1200D300Z05S100HN09   3.000   3.433 1.000 - 2.189 1.750 .177 5   8300 Yes   1.86
3323875 M1200D300Z06S100HN09   3.000   3.433 1.000 - 2.189 1.750 .177 6   8300 Yes   1.79
3323876 M1200D300Z09S100HN09   3.000   3.433 1.000 - 2.189 1.750 .177 9   8300 Yes   1.97
3650541 M1200D400Z06S125HN09   4.000   4.432 1.250 - 2.722 1.750 .177 6   6300 Yes   3.17
3323877 M1200D400Z08S125HN09   4.000   4.432 1.250 - 2.880 1.750 .177 8   6300 Yes   2.93
3323878 M1200D400Z11S125HN09   4.000   4.432 1.250 - 2.880 1.750 .177 11   6300 Yes   3.14
3958019 M1200D400Z06S150HN09   4.000   4.432 1.500 - 3.661 1.750 .177 6   6300 Yes   4.17
3958020 M1200D400Z08S150HN09   4.000   4.432 1.500 - 3.661 1.750 .177 8   6300 Yes   4.13
3958021 M1200D400Z11S150HN09   4.000   4.431 1.500 - 3.661 1.750 .177 11   6300 Yes   4.16
3650542 M1200D500Z08S150HN09   5.000   5.431 1.500 - 3.652 2.380 .177 8   5000 Yes   6.20
3323879 M1200D500Z10S150HN09   5.000   5.431 1.500 - 3.810 2.380 .177 10   5000 Yes   5.94
3323880 M1200D500Z14S150HN09   5.000   5.431 1.500 - 3.810 2.380 .177 14   5000 Yes   6.21
3323881 M1200D600Z12S200HN09   6.000   6.432 2.000 - 4.879 2.380 .177 12   4100 Yes   9.10
3323882 M1200D600Z16S200HN09   6.000   6.432 2.000 - 4.879 2.380 .177 16   4100 Yes   9.36
3954507 M1200D800Z16S250HN09   8.000   8.432 2.500 4.000 5.118 2.380 .177 16   3130 Yes 13.14
3954508 M1200D1000Z20S250HN09 10.000 10.433 2.500 4.000 7.120 2.380 .177 20   2510 Yes 24.52
3954509 M1200D1200Z24S250HN09 12.000 12.433 2.500 4.000 9.016 3.150 .177 24   2090 Yes 42.66


Victory M1200 • Spare Parts

D1 D insert screw in.lbs Torx driver coolant lock screw coolant lock screw coolant cap SHCS with coolant groove
  2.000   .750 12146034500 31 12148082400 12146102400
  2.500   .750 12146034500 31 12148082400 12146102400
  3.000 1.000 12146034500 31 12148082400 12146102800
  4.000 1.250 12146034500 31 12148082400 12146109500
  4.000 1.500 12146034500 31 12148082400
  5.000 1.500 12146034500 31 12148082400 12146110500 12146111800
  6.000 2.000 12146034500 31 12148082400 12146110600 12146111900
  8.000 2.500 12146034500 31 12148082400 12146112000
10.000 2.500 12146034500 31 12148082400 12146112100
12.000 2.500 12146034500 31 12148082400 12146112200
