NMTB Shanks

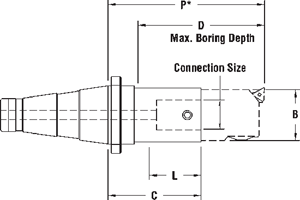

CLICK TOOL NUMBERS TO ORDER
30 TAPER
Part Number
Connection Size
B
C
D
L
P*
Weight (lbs.)
N30-PC4-4
PC4
1.54
2.64
3.94
1.82
4.49
1.5
40 TAPER
N40-PC4-3
PC4
1.54
1.93
3.20
1.35
3.78
2.1
N40-PC6-4
PC6
2.52
2.17
4.14
1.34
4.97
6.4
50 TAPER
N50-PC4-4
PC4
1.54
2.87
3.94
2.09
4.72
6.4
N50-PC4-6
PC4
1.54
5.24
6.30
4.45
7.09
7.6
N50-PC5-4
PC5
1.97
2.48
3.94
1.70
4.72
6.6
N50-PC5-8
PC5
1.97
6.42
7.88
5.63
8.66
10.6
N50-PC6-4
PC6
2.52
1.93
3.94
1.15
4.72
6.4
N50-PC6-8
PC6
2.52
5.86
7.88
5.08
8.65
12.9
N50-PC6-12
PC6
2.52
10.59
12.60
9.81
13.38
17.8
N50-PC7-6
PC7
3.54
2.48
5.87
1.26
7.09
8.1
* Compute "P" dimension by adding "C" dimensions of all components used. Maximum bore depth "D" may be increased by using extension adapters.
