Precision Finish Boring Insert Holder Blanks

After machining insert pocket, heat treat is recommended but not necessary. Heat treat per specifications below.
Dimension “A” must be ground. Grind equally from both sides.
Do not machine any of the seating surfaces.
Insert pocket should be machined so that insert tip is .003 – .005 above center line of blank, after finish ground to “A” dimension.

CLICK TOOL NUMBERS TO ORDER

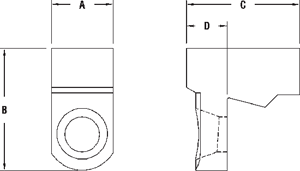

Part Number	Quantity	Size/Type	A	B	C	D	Material	Case Hardened Recommendation
INSERT HOLDER BLANKS
2215-BLANK	Single	2 Finish	.300	.71	.35	.14	1018	RC 50-54/.010 - .015 Deep
2315-BLANK	Single	3 Finish	.345	.78	.44	.18	1018	RC 50-54/.010 - .015 Deep
2415-BLANK	Single	4 Finish	.440	1.01	.57	.20	1018	RC 50-54/.010 - .015 Deep
2515-BLANK	Single	5 Finish	.550	1.21	.71	.30	1018	RC 50-54/.010 - .015 Deep
2615-BLANK	Single	6 Finish	.710	1.35	1.00	.45	1018	RC 50-54/.010 - .015 Deep
2715-BLANK	Single	7 Finish	.710	1.35	1.30	.47	1018	RC 50-54/.010 - .015 Deep
2815-BLANK	Single	8 Finish	.710	1.35	1.47	.47	1018	RC 50-54/.010 - .015 Deep
